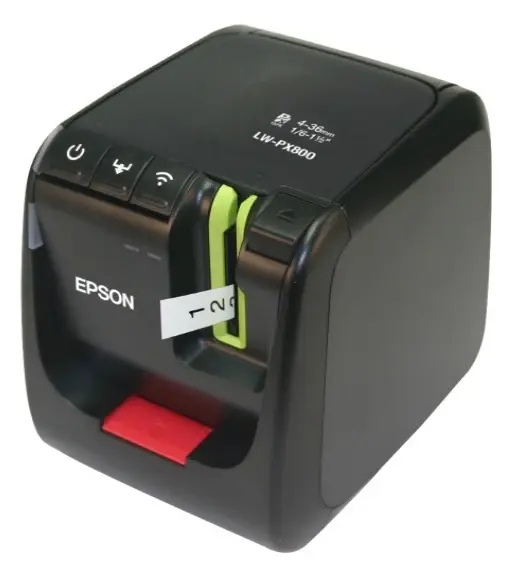

EPSON LW-PX800 LABEL & SHRINK TUBE PRINTER

Transforms the workstation label printer into a work-PLACE label printer

The LW-PX800 is an easy-to-use, flexible and powerful desktop label printer that is an essential tool for the entire workplace. With fast print speeds, a compact design and the best label-creating software on the market, the LW-PX800 gives you the ability to communicate visually across a wide variety of industry applications. Wi-Fi connectivity opens up the printer to multiple users, increasing the flexibility of the printer while substantially reducing costs. The LW-PX800 is the single-source labeling solution everyone in your company will want to use. It can print on more than 163 materials including magnetic tape, heat shrink tube, glow-in-the-dark, and industrial adhesive labels up to 1.5" wide. K-Sun and Epson back the quality of the LW-PX800 with an unrivaled lifetime warranty and expert one-on-one customer service—a combination that can't be beat.

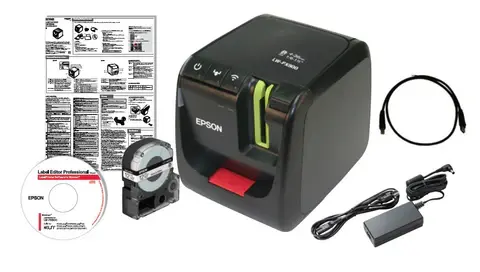

Includes: LW-PX800 PRINTER, AC ADAPTER, USB CABLE, GUIDE & 212BWPX TAPE

(Download software at https://labelworks.epson.com/downloads)

**Lifetime Warranty**

BUY NOW!

PRICE: $334.95

Specifications

Machine Dimensions Approx. 12.3W x 15.1D x 13.8H cm

Machine Weight 2.4 lbs.

Print Resolution 360 dpi thermal transfer

Print Speed 35mm/sec

Barcode Formats 15 EAN 8, EAN 13, Code 39, Code 128, UPC-A, UPC-E, NW-7, ITF, EAN 128, GSI DataBar, Data Matrix, Micro QR Code, QR Code, Maxicode, PDF 417

Software Label Editor Professional for Windows® 10, 8.1, 8, 7 - Label Editor Lite (Mac)

Database File Compatibility .csv, .txt, .xls, .xlsx

Printer Type Thermal Transfer Desktop

Tape Cutter Automatic tape cutter; Half Cut and Full Cut

Drop-Stop & Pick-and-Print Prints, cuts, and holds the label until pulled from the printer. Next label in the batch will print automatically afterwards.

Mixed-Length (Mix-Len) Label – Cut on Demand Half cuts multiple, variable-length labels to size in a half-cut strip or full-cut individual labels

Assign Sequence Number For Block labels

Trimmer Peelguard® Trimmer

Media Lengths 30′ (standard media); 96″ (heat shrink tube); Various lengths for specialized materials (check brochure for details)

Media Widths Standard Industrial Tape Sizes: 1/6″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1.5″ (4mm,6mm,9mm,12mm,18mm,24mm,36mm)
Shrink Tube Sizes: 1/8″ [16-22 AWG], 3/16″ [8-12 AWG], 1/4″ [10-20 AWG], 3/8″ [6-18 AWG], 1/2″ [AWG 2-8], 9/16″ [AWG 0-5], 7/8″ [0000-1 AWG]
Die Cut: 1″ Circle, 1″ x 1.5″ Oval or Square

Wireless Wi-Fi Yes. Wi-Fi connect. iLabel App (iOS/Android)

Number Serialization Up to 4 digits (0 to 9), Alphabet (A to Z), (a to z))

Interface USB 2.0 Full-speed, wired LAN (10/100BASE-TX), wireless LAN (IEEE 802.1 1b/g/n)

Power Supply 15+- 5% [V] AC Adapter (included)

Ratings/Markings UL, CE, GS [Level 5]

Battery Options None

Warranty Lifetime Warranty

Auto Tape Detect Confirms tape type and size.

Import Graphics Yes

Network Connect Yes

Multi Line Print Yes

Auto-Tape Detection Detects end of tape cartridge. Will continue to print from most recent label printed once new supply has been loaded.

Symbols 839 Symbols, 8 Table Formats, 86 Borders, 158 Wizards

Print Rotation Horizontal, vertical, and mirror (backwards printing)

Tape Saving Tools Character space adjustment, Double figures, Margin settings (see below), Text Alignment (left, center, right, justify)

Margins Minimum: 10 mm lead on standard industrial tapes

Highlights

100’s of templates for commonly used labels and signs
Quickly make labels and signs for safety, facility, GHS, inventory, electrical, or many other applications.

1000’s of symbols
The software is fully loaded with symbols for a variety of safety, organizing, or decorative labels.

Bar Codes
Add commonly used bar codes for inventory management, asset tracking, or other applications. You can also create 2D QR codes to hold more information like links to websites, phone numbers, and detailed product information all in the same code.

Half-Cut
The LW-PX800 has the ability to cut only the top portion of the label, making it easier to peel off and create strips of labels

Import data from Excel
Create large batches of labels using data imported from Excel, or create tables of information directly in the software.

The software has a user-friendly layout that allows for quick and easy label creation. Easy to navigate layout, quick access icons, and fully loaded with symbols, bar codes, and templates.

Wireless Printing
Print from any Android or Apple smart device using the Epson iLabel App.

Import Images
Add an image to your labels for a unique label, or add your logo for a professional touch.

Application Ideas

Designed for durability and flexibility. Industrial grade adhesive labels and heat shrink tube markers for commercial, electrical, medical, laboratory, home, office and just about anywhere else.

Make professional looking heat shrink tube markers for electrical and ICT/Data Comm applications with 7 Heat Shrink Tube sizes up to 7/8″.

Make durable, and cost-saving colored magnet labels for inventory management, whiteboard, or rack/bin labeling applications. Red, blue, green, white, and yellow magnetic tape is durable, flexible, and moves with your inventory when you need it to.

Patch panel labeling is quick and easy with the LW-PX900.

Punch blocks and terminal blocs are no problem with the quick access hot-keys.
